Roof Access Hatches are ideal for rooftop patios, emergency exits, roof and balcony access or any other application where roof egress is a requirement. To be installed on flat roofs of any finish. All our roof access hatches provide you with safe and convenient access.
We provide Canadian made roof hatches of 30" X 36" which is the industry standard.
Furthurmore, custom sized roof hatches can be ordered, with or without insulation (2 inch insulated walls), with a metal cover or with an acrylic dome cover. Acrylic dome roof hatches are great since they double as a skylight!
**We now offer Fakro flat roof hatches which are available via special order. (DRL model can be paired with Fakro folding attic ladders - sold separately.)
Features of Canadian Roof Access Hatches
EASY TO INSTALL
WEATHERTIGHT
SOLID CONSTRUCTION
MODERN EFFICENT DESIGNS
VARIOUS MODELS
FAKRO Roof Access Hatches
Insulated Access Roof Lights (DRC and DRF) and Flat Roof Access Door (DRL)

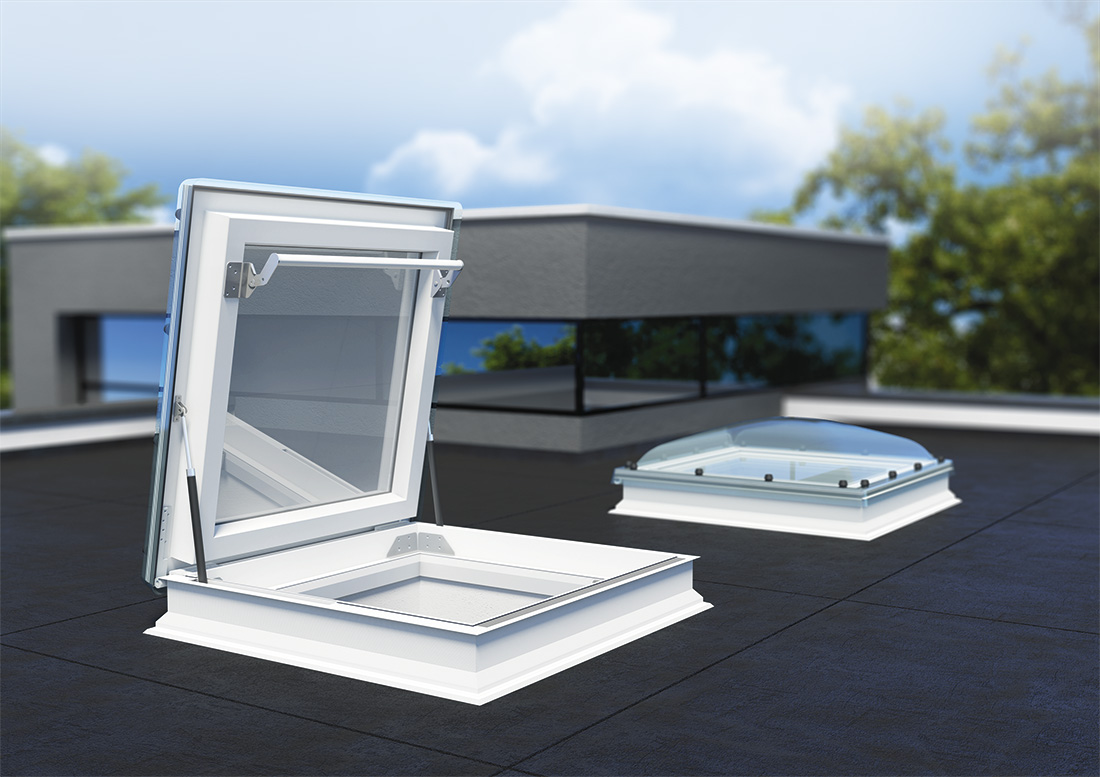

Insulated Access Roof Lights:
Fakro's Roof lights provide illumination and an extra utility feature. Special hinges and a functional opening system used in the access roof light ensure easy sash opening up to 80°. Gas springs facilitate operation of the sash and keep it stable in the open position, thus protecting against accidental closing. Finally, anti-slip covers on their profiles makes the hatches even safer to use.
The window comes in the following versions:

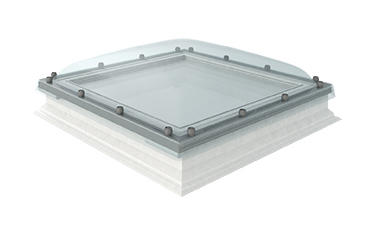

DRC – flat access roof light with dome, equipped with P2 glazing unit. Features excellent insulation parameters. The dome can be transparent (D_C-C) or opaque (D_C-M).

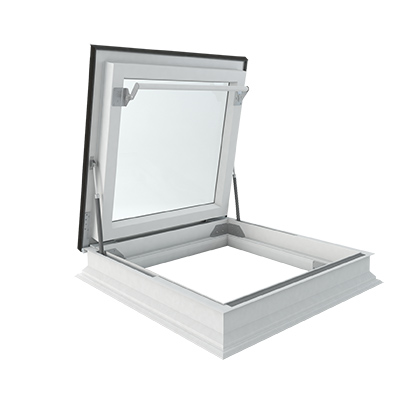

DRF – flat access roof light without dome, equipped with DU6 glazing unit. Features excellent insulation parameters. Looks just like a standard flat roof window.
-
The frame of the flat roof window is manufactured from multi-chamber PVC profiles filled inside with insulation material. With specially designed shape of the profiles, the flat roof window features up to 16% greater glazed area when compared to solutions of the competition.
-
The type C flat access roof light is intended for roofs with pitches between 0° and 15°. The type F flat access roof light is designed for installation in roofs with pitches between 2° and 15°.
-
Windows can be set in an additional 15cm high XRD base which allows raising the window. Hence it is suitable for mounting in different types of roofs such as "green" roofs. It is possible to connect up to two XRD bases.
-
The window design allows installation of both internal and external accessories. External awning blind protects the room from overheating. Also, internal accessories provide protection from intense sunlight and enhance the interior design.
Warranty: 10 years for windows

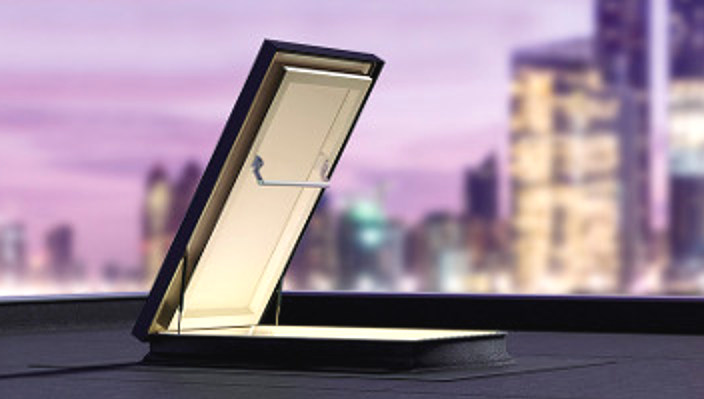

Flat Roof Access Doors:

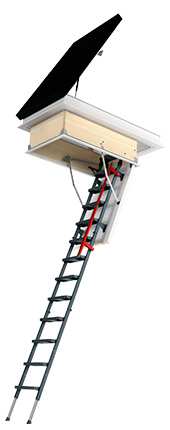

The DRL roof access door is structurally durable and comes in a range of sizes. It can be combined with Fakro attic folding ladders.
Characteristics
-
Fully assembled product
-
The frame is constructed of multi-chamber PVC profiles filled with insulation material thus the whole structure is insulated.
-
Insulated sash equipped with a rubber seal ensures perfect thermal insulation performance.
-
The sash can be opened up to 60°. Gas springs facilitate opening and closing and the sash can be left in open position.
-
Anti-slip tape on the base ensures safe access to the flat roof.
-
Sizes of the roof access door are adjusted according to the size of the attic ladders (ladders are sold separately).
-
Can be mounted on an additional XRD base with a height of 15cm. For installation on green and living roofs.
-
Option to install an additional ZBR lock which protects against accidental closure of the sash.
-
Suitable for roof pitches between 0° and 15°.
